Domestic Diaphragm Gas Meter in Pakistan Model G 4

Domestic Diaphragm Gas Meter in Pakistan Model G 4

Rs.13,000.00 PKR
Rs.0.00 PKR Rs.13,000.00 PKR
Sale Sold out
Shipping calculated at checkout.

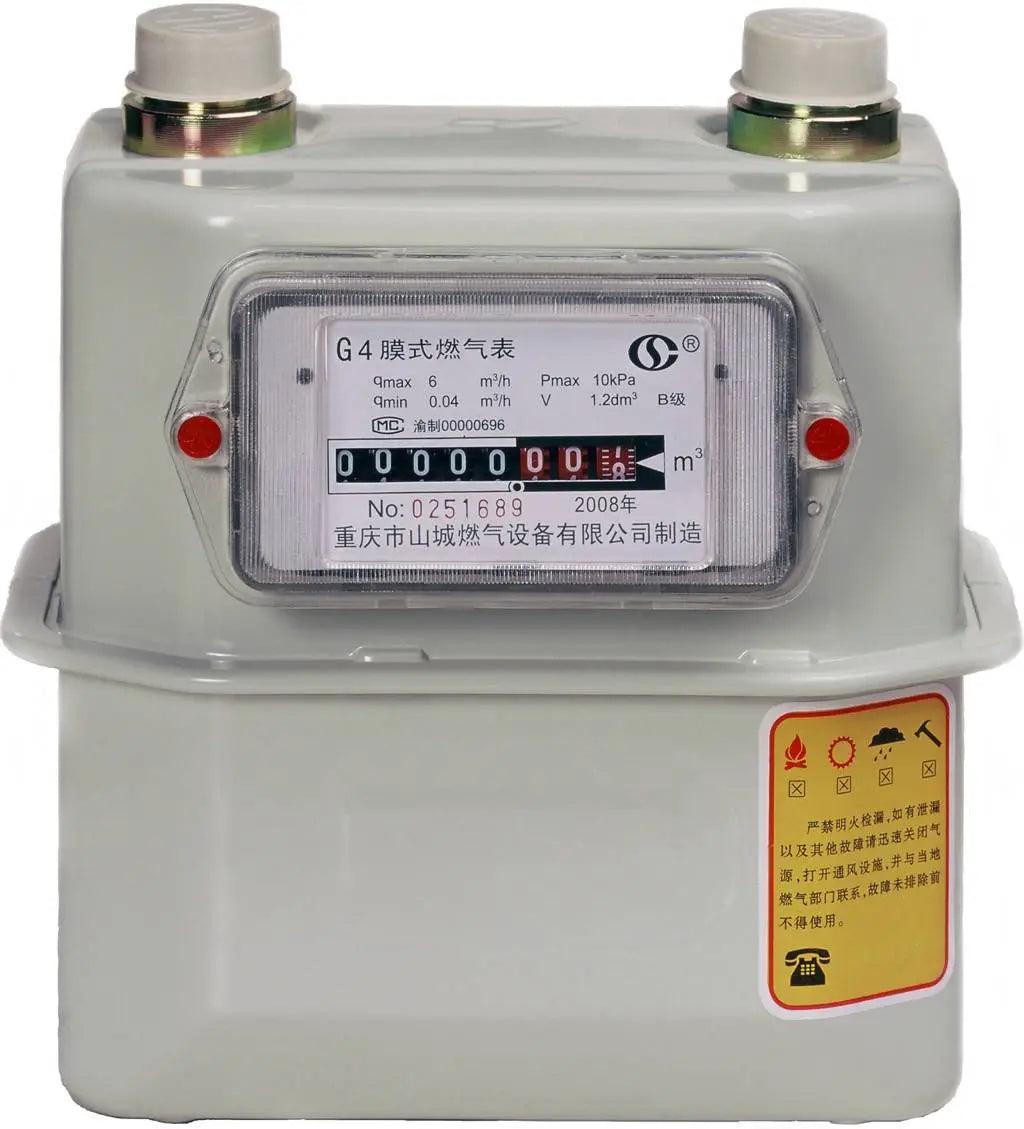

Domestic Diaphragm Gas Meter in Pakistan Model G 4


A gas meter is a specialized flow meter, used to measure the volume of fuel gases such as natural gas and liquefied petroleum gas. Gas meters are used at residential, commercial, and industrial buildings that consume fuel gas supplied by a gas utility. Gases are more difficult to measure than liquids, because measured volumes are highly affected by temperature and pressure. Gas meters measure a defined volume, regardless of the pressurized quantity or quality of the gas flowing through the meter. Temperature, pressure, and heating value compensation must be made to measure actual amount and value of gas moving through a meter.

Residential Diaphragm Gas Meter Model G4 are gas volume measurement instrument for coal gas, natural gas, LPG and all non-corrosive gases. It is designed and developed according to world advanced technology, based on our rich experience, with the merits of small size, light in weight, accurate measurement, high sensibility, low noise.

Specifications  Diaphragm Gas Meter

Nominal Flow Rate Qn (m3/h)  :  4
Maximum Flow Rate Qmax (m3/h) :6
Connection thread: 1/2" M30×2or 3/4" M30×2
Weight kg : 2.00
Outside casing: Quality steel case

Domestic Diaphragm Gas Meter

Model : G4 Made in China

Features

Compact Size, light weight

Stable accuracy and smooth operation

High metrological performance, low noise level

At www.pakistanpowertool.com keeping the pace of industry developments, we have an extensive range of Residential and Commercial Diaphragm Gas Meter. Low Pressure Diaphragm Gas Meter available at best competitive rates in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
