OGM Gasonline Diesel Kernosene Motor Oil Meter 1 Inch in Pakistan

OGM Gasonline Diesel Kernosene Motor Oil Meter 1 Inch in Pakistan

High Flow Analogue Oval Gear Flow Meter

• This Aluminium, oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability

• Compact size and low maintenance

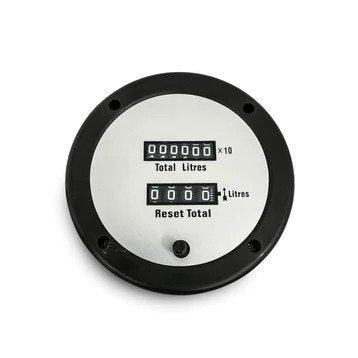

• Easy to read display

• Low pressure drop

• Can be mounted horizontally and vertically

• Applications in measuring fuel, diesel, oil, petroleum products, compatible chemicals, food based products and ingredients

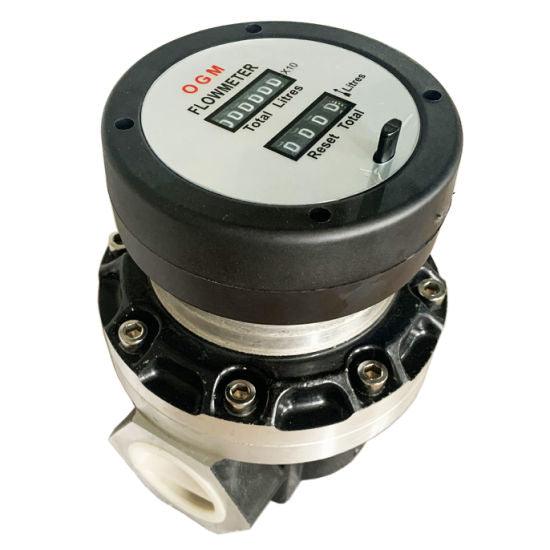

OGM-25 aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability,applying in the petroleum,chemical,food industry,etc. It has the traits of low pressure drop,compact sixe,easy maintenance,easy to read and operate mechnical display,horizontally and vertically flexibility of installation

Model: OGM- 25
SIZE: 1"
Min.Flow Rate20L/min
Max.Flow Rate120L/min
AccuracyModel±0.5%
repeatability0.03%
Max.Operating Pressure1.8MPa
Minimum flow rate L/min 12
Maximum flow rate L/min 120
